IML Label Flatness & Curl Control: Causes, Material Science, and Proven Solutions for Flawless Label Application

Learn why IML label flatness matters, what causes label curl, and how material science, printing control, and application techniques ensure flawless results.

Why IML Label Curl Is a Critical Manufacturing Risk (Not Just a Visual Issue)

This guide serves as a comprehensive reference for label flatness and curl control, covering material selection, printing processes, application methods, and storage best practices.

Unlike pressure-sensitive labels applied post-molding, IML labels must remain dimensionally stable under three extreme conditions:

Electrostatic or robotic placement

High-temperature molten plastic injection

Rapid cooling and shrinkage of the molded resin

Any pre-existing curl or internal stress in the label is magnified during molding.

🔍 Key Fact (IML Reality) In IML, label curl does not “relax” after application—it is locked into the molded part.

A curled IML label can cause:

Poor cavity positioning

Label floating or shifting during injection

Incomplete bonding between label and resin

Surface waves, ghosting, or optical distortion

Increased scrap rate and unstable cycle times

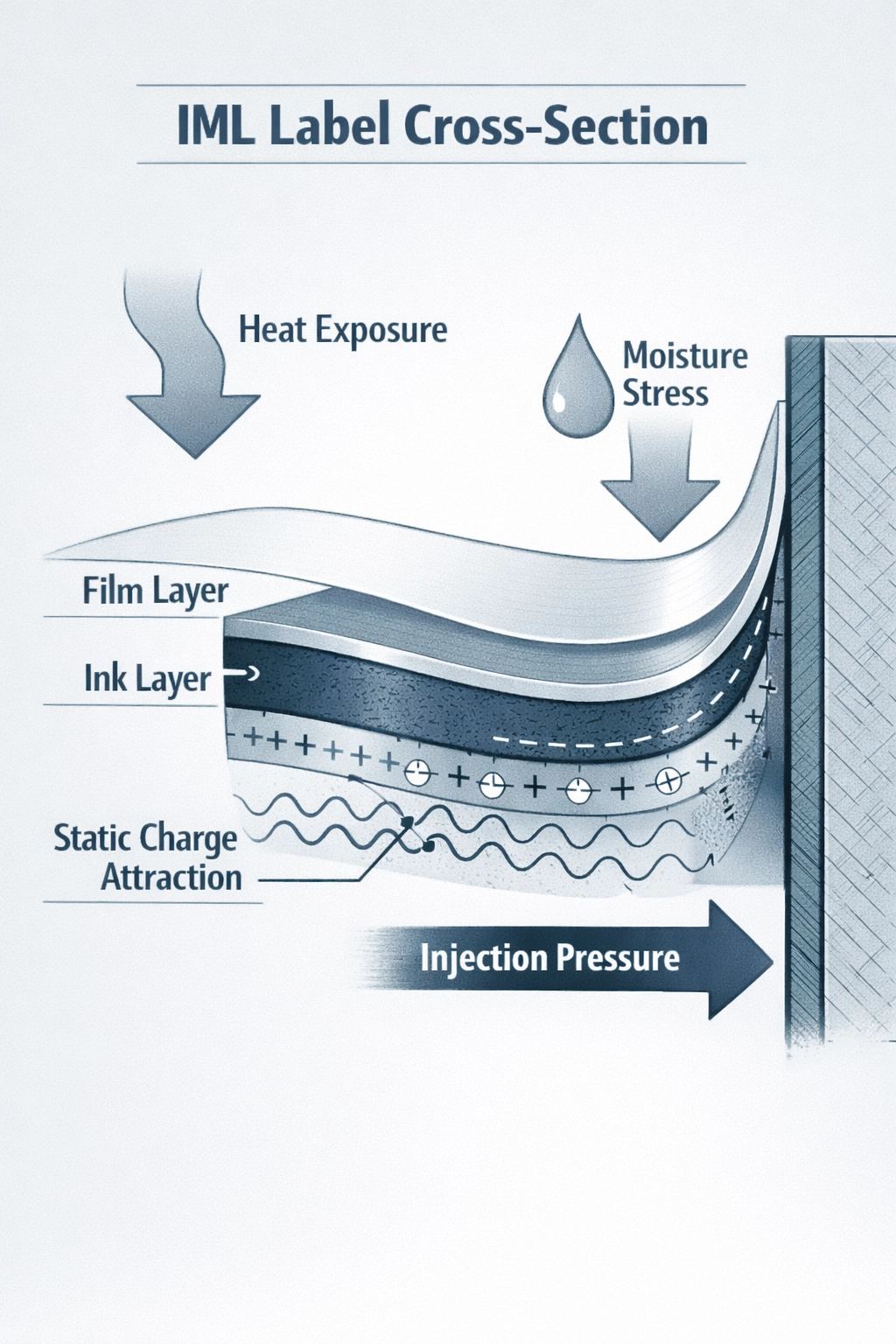

What Causes Curl in IML Labels?

IML label curl is not accidental. It is a predictable reaction to an imbalance inside the label construction.

IML curl is primarily caused by moisture imbalance, thermal history during printing, residual web tension, and incompatibility between label film and injected resin.

1. Moisture Imbalance (Even for Film Labels)

While IML labels are typically film-based (PP, PE), moisture still matters:

Ink layers

Coatings

Surface treatments

If one side of the label absorbs or releases moisture faster, micro-curl develops, which later becomes a macro-defect during molding.

IML Insight Even a “flat” IML label can carry internal stress that only reveals itself at 220–260°C injection temperatures.

2. Thermal Stress from Printing & Curing

IML labels are often printed using:

UV flexo

UV offset

Gravure

Excessive UV energy causes:

Ink shrinkage

Film memory formation

Differential contraction between print and non-print areas

This creates directional curl, which interferes with:

Robot pick-up accuracy

Static charging behavior

Mold wall adhesion

3. Web Tension Memory

High web tension during printing or die-cutting stretches the film. Once tension is released, the label tries to return to its original dimension, resulting in curl or edge lift.

🔍 Claim (True) Web tension memory is one of the most underestimated causes of IML label curl. ✅

How Material Science Solves IML Curl at the Source

You cannot “fix” IML curl at the molding machine. IML flatness must be engineered at the material level.

Core Principle: In IML, balanced constructions outperform strong adhesives or higher static force.

IML Facestock Selection: Why PP Dominates

Most IML labels use polypropylene (PP) because:

It is compatible with PP containers

It allows molecular bonding during injection

It offers good flexibility and heat resistance

However, not all PP films behave the same.

Property	Standard PP Film	IML-Optimized PP Film
Dimensional stability	Medium	High
Curl resistance	Medium	Engineered
Static response	Inconsistent	Controlled
Ink anchorage	Variable	Treated & stabilized

IML Best Practice Use IML-grade PP films with controlled shrinkage and balanced surface treatment, not general-purpose BOPP.

Ink & Coating Balance (Critical for IML)

Heavy ink coverage on one side creates thermal imbalance during injection.

IML-optimized printing focuses on:

Controlled ink film thickness

Balanced coverage

Heat-resistant ink systems

Low-shrink UV formulations

🔍 Claim (False) “Higher ink adhesion always improves IML performance.” ❌ Excessively rigid ink layers increase stress and promote curl during molding.

Static Performance ≠ Flatness (But They Are Linked)

Static charging helps label placement—but static cannot correct curl.

A curled IML label may still:

Hold static

Be picked by a robot

Fail during injection

Flatness ensures predictable electrostatic behavior and stable placement.

Printing & Converting Controls That Prevent IML Curl

1. Low & Stable Web Tension

IML labels require:

Minimal stretch

Consistent tension from unwind to rewind

Closed-loop tension systems are not optional for IML-grade production.

2. Thermal Management (UV ≠ Unlimited Power)

Preferred solutions:

LED-UV curing

Multi-stage cooling zones

Avoid over-curing “just to be safe.”

IML Rule Over-cured ink creates more problems than under-cured ink.

3. Conditioning Before Delivery

After printing and die-cutting:

Allow labels to rest 24–48 hours

Store under controlled temperature and humidity

Let internal stress relax before shipment

This step alone can dramatically improve mold performance.

IML Application, Handling & Storage Best Practices

The Importance of Stable IML for Robots and Injection Molding

Correct Handling in IML Plants

Labels must be stored flat

Avoid vertical stacking

Protect from heat sources

Maintain stable humidity

🔍 IML Fact Labels deformed during storage cannot be “flattened” by static or injection pressure.

Mold Compatibility Matters

Even perfect labels fail if:

Mold surface is uneven

Venting is poor

Resin shrinkage is mismatched

IML success is a system, not a single component.

Conclusion: Flat IML Labels Are an Engineering Requirement

In IML, label flatness is non-negotiable.

It determines:

Placement accuracy

Fusion quality

Surface aesthetics

Scrap rate

Production stability

The most reliable IML systems treat labels as engineered functional layers—not decorative elements.

Action Checklist for IML Engineers & Buyers

Specify IML-grade PP films

Control ink & thermal balance

Minimize web tension during printing

Condition labels before molding

Store flat, apply FIFO

Validate labels with real molding trials
